Product Description

Technical Specifications for TO-Q-SY1-JWT WiFi Smart Switch

Brand/ Manufacturer TONGOU/ Changyou Technology (Zhejiang) Co.,Ltd. Model TO-Q-SY1-JWT Connection Protocol Type Only for Wi-Fi IEEE 802.11 b/g/n 2.4GHz Relay Type Latching relay type Rated Operating Voltage AC 90-240V, 50/ 60Hz Rated Operating Current 6/ 10A/ 16A/ 20A/ 25A/ 32A/ 40A/ 50A/ 63A Poles Description 1P+N (N pole cannot be cut off) Circuit Type Single-phase Max Wiring Capacity Power side: 10mm²; Load side: 10mm² Current Scenario AC1, AC electricity positive import Mounting Type 35mm DIN rail Shell Material Nylon PA66 Accuracy ±2% Certification & Standard FCC, CE & IEC 60947 standard (without any protection such as overcurrent or leakage) Operation Type Mechanical control, remote control via “Smart Life” and “Tuya” APP Mobile Phone Support System Android/ iOS

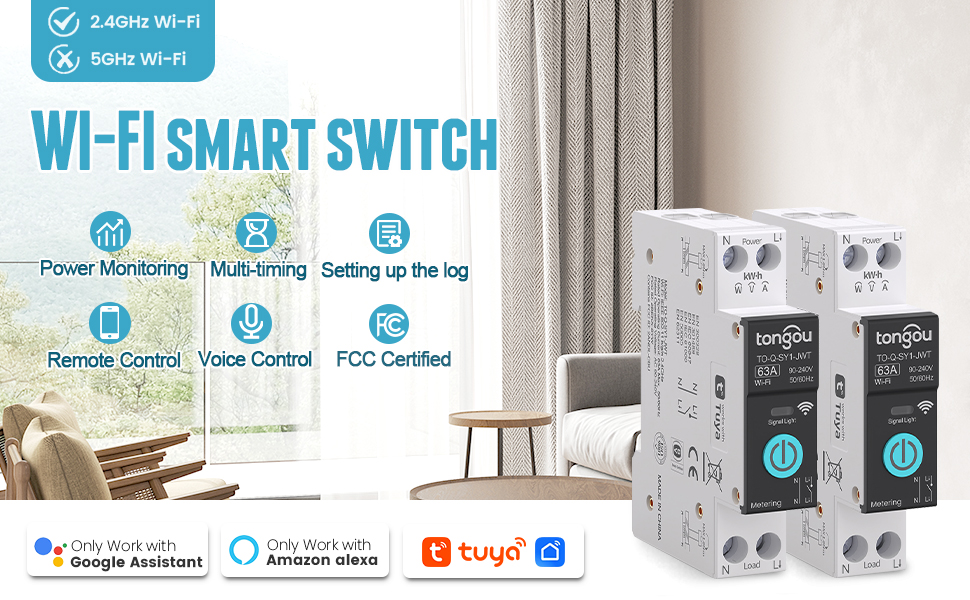

2.4GHz Wi-Fi Smart Switch

Multi-Functional

Remote Control

You can control household appliances via the “Smart Life” or “Tuya” APP. There are no restrictions regarding distance and time.

Voice Control

The connected WiFi switch is compatible with voice control from Amazon Alexa and Google Assistant. You can turn devices on or off via voice commands to the SY1. With the SY1 switch, you can free your hands

Auto Reconnection

After Wi-Fi loss, Internet interruption, or power outage, the smart switch will automatically try to reconnect.

Fully Accessible 100FT

Normally, the fully accessible distance between SY1 and WiFi router is 100 FT. If connection issues arise, please check if the router is the cause, as it may affect SY1’s WiFi reception. If the router supports both 5GHz and 2.4GHz, please switch to 2.4GHz first to ensure sufficient 2.4GHz residual capacity for stable device access, and then reconnect.

Product Details

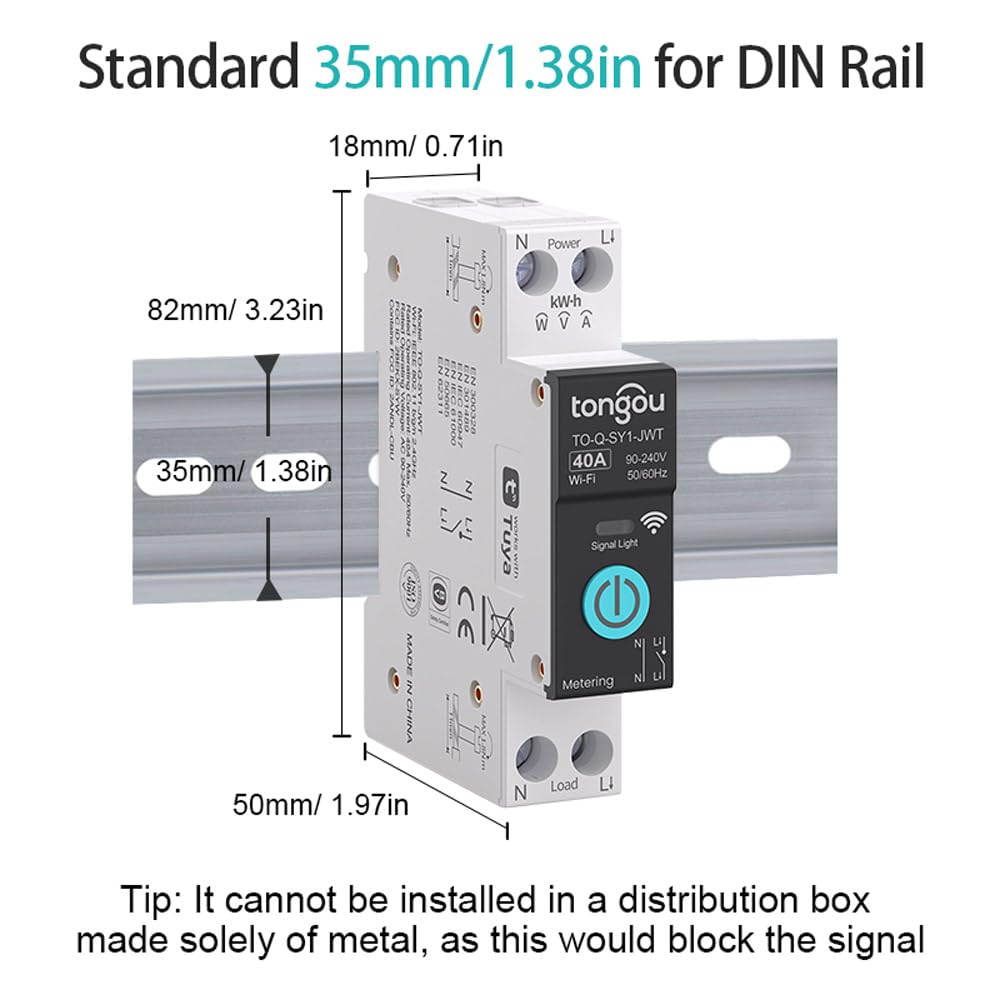

Standard 35mm for Din Rail

Touch Handle

Single Channel Wiring

Positioning Clip

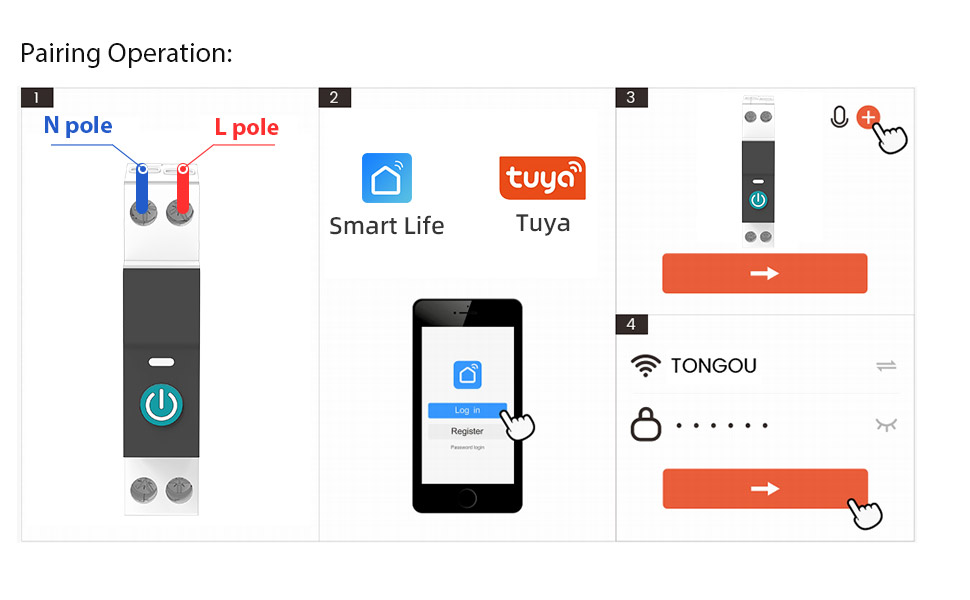

1. First, please connect the wire from the top side of the WIFI Din rail switch. Then connect the live wire to the L pole and the neutral wire to the N pole.

Please make sure that the wiring is correct and that there is a strong WiFi signal.

2. First, please turn on your phone’s bluetooth and WiFi. Then open the APP and keep pressing the power button. Wait for about 5-10 seconds, the LED indicator will flash slowly blue lights.

3. Wait for a moment, the graphic will be displayed on the APP. Or you can click the “+” in the upper right corner and select the “Add Device” button. You can click the “Add” button after waiting for the device to be detected.

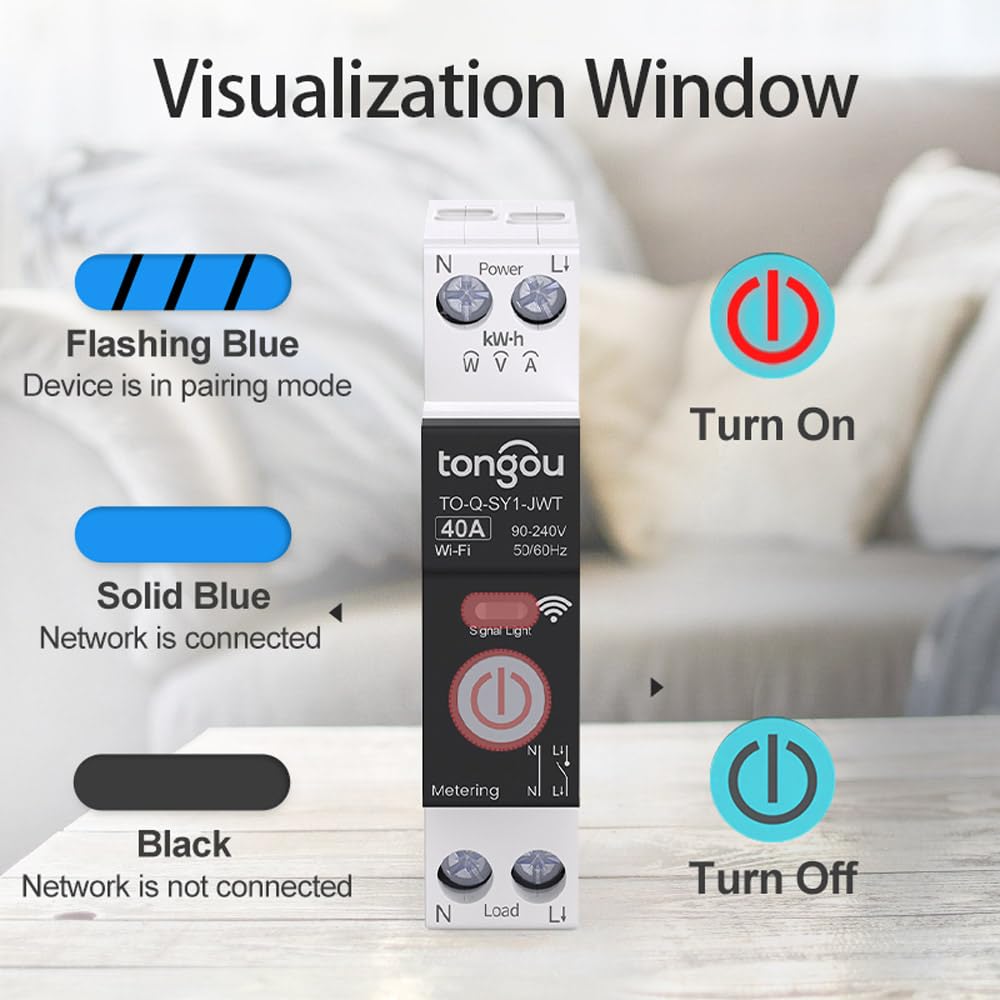

4. Please enter the WLAN account and password and click “Next Step”. Wait for the switch to connect to the network. After successful connection, the LED indicator will change from the slow flashing blue light to the steady blue light.

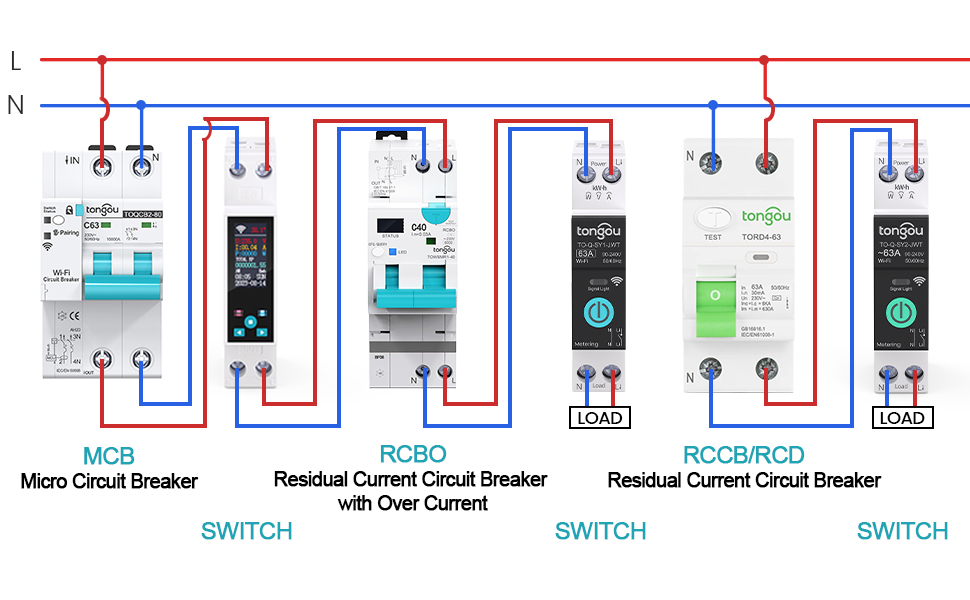

Wiring Diagram

Note：If the load side is used for Led lights, rated current ≤ 16A, total power ≤ 4000W.

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.8 out of 5 stars 24

5.0 out of 5 stars 1

5.0 out of 5 stars 1

Price

$21.39$21.39 $27.99$27.99 $31.99$31.99

Type
Smart Wi-Fi Switch TO-Q-SY1-JWT Smart Wi-Fi Switch TO-Q-SY2-JWT Smart Wi-Fi Switch TO-Q-SYS-JWT

Rated Operating Current
20A 1-63A 1-50A

Remote Control

✓

✓

✓

Voice Control

✓

✓

✓

Multi-timing

✓

✓

✓

Real-time Power Monitoring

✓

✓

✓

Clear/Export Electricity Data
no data
no data

✓

Multiple Protections
no data

✓

✓

Reclosing Functions
no data
no data

✓

Password Protection
no data
no data

✓

Product Dimensions ‏ : ‎ 3.54 x 0.79 x 3.15 inches; 4.16 ounces
Item model number ‏ : ‎ 40A
Date First Available ‏ : ‎ June 1, 2024
Manufacturer ‏ : ‎ Changyou Technology (Zhejiang) Co., Ltd.
ASIN ‏ : ‎ B0D5V8G8RD
Country of Origin ‏ : ‎ China
Note: SY1 is a switch without any protection such as overcurrent or leakage. Complies with IEC 60947 standard. Rated Operating Voltage: AC 90-240V, 50/60Hz;Wireless Type: Wi-Fi 2.4GHz; Poles Description:1P+N, N pole cannot be cut off
Applicable Current Scenarios: AC1, applied to circuits controlling heaters, incandescent lamps, ovens, and other purely resistive loads; Max Wiring Capacity: Power side: 10 mm²; Load side: 10 mm²; Type: Latching relay, capable of carrying high current
Universal Home DIY Mode: With the SY1 smart switch, it can convert small household appliances from traditional to smart within 10 minutes. With this compact WiFi switch, you can turn devices like table lamps and fans into connected objects
Remote Control via APP: You can control household appliances via the “Smart Life” or “Tuya” APP. There are no restrictions regarding distance and time. The “Smart Life” APP is available for download from the “App Store” and “Google Play”
Power Monitoring (AC Electricity Positive Import): Analyze the real-time power consumption, load current, load voltage, and load power of connected devices, and record historical power consumption (by hour, day, month, and year)
Voice Control: The connected WiFi switch is compatible with voice control from Amazon Alexa and Google Assistant. You can turn devices on or off via voice commands to the SY1. With the SY1 switch, you can free your hands
Multi-timing: The intelligent switch offers schedule/countdown/circulate/astronomical timing mode (sunrise/sunset). The connected universal switch helps you avoid forgetting to turn off appliances. Adjust the working time of appliances as needed to avoid unnecessary energy consumption and achieve energy savings
Easy Installation and Wide Application: You can connect the smart switch to your devices within 10 minutes. Simply press and insert the cables for wiring. Screws can be easily tightened and loosened with a screwdriver

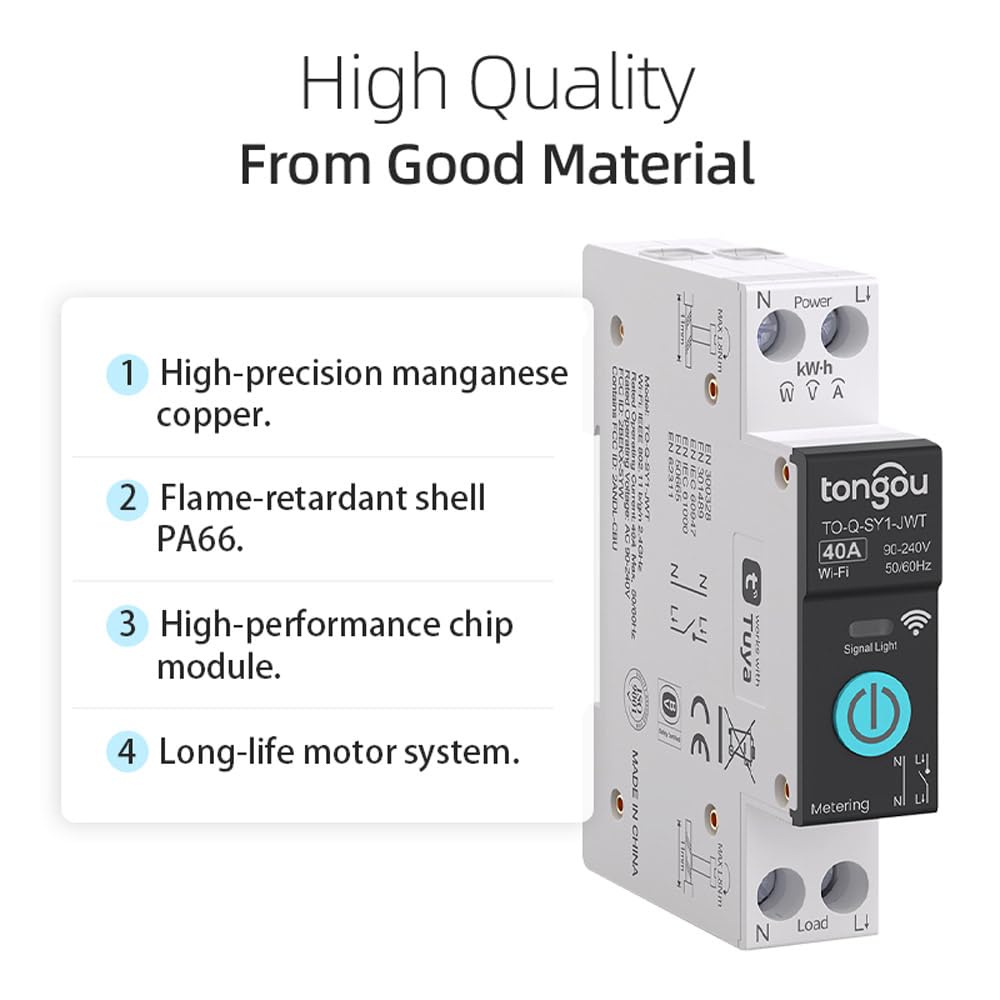

Premium Materials: The smart switch is made of high-quality materials. Copper offers good conductivity, while flame-retardant PA66 material is heat-resistant, effectively enhancing safety during use
