Price: $489.99
(as of Mar 06, 2025 20:44:13 UTC – Details)

Product Description

It’s a heavy package with 4 strong force magnetic locks, please check if it’s suitable for your project and door before purchase, If need special bracket for install or any question, send us message.

Support phone app( Android and iPhone) to open lock, easy to use.

Software Supports Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.

We provide video guide+Detail wire diagram,so you can easily setup System.

We only do quality product and service, because this is for security system, Can Check Video Before Purchase.

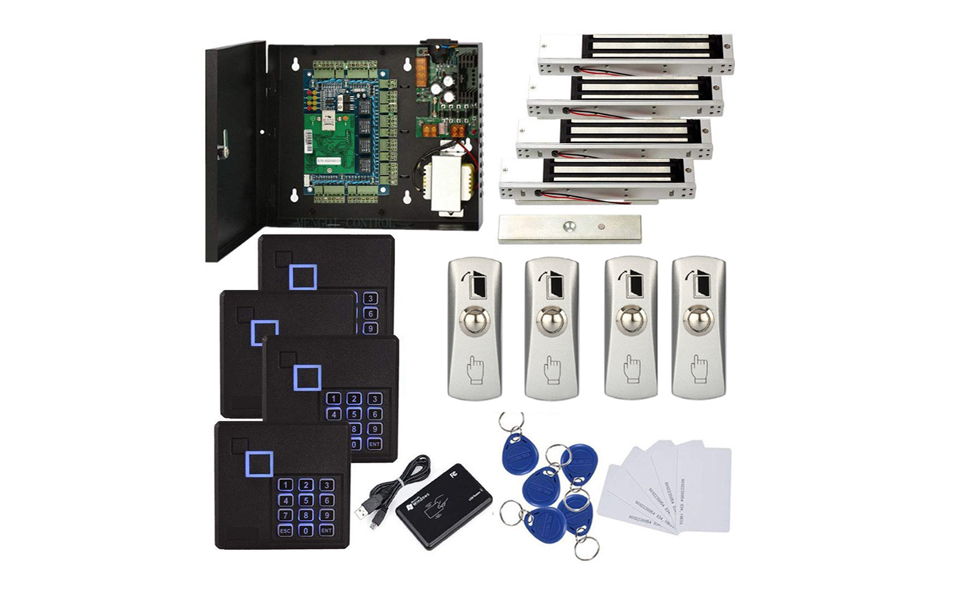

Package include:

4pcs RFID Keypad/PIN Pad Reader( Support swipe or PIN or Card+PIN )

4pcs Electric Magnetic Lock(600LBS holding Force)

4pcs Metal Push to Exit button with install base

1pc 4 door Network Access-Control-Panel-Controller

1pc Power supply Box( 110-240V input, 5A output, to power the whole system)

1pc USB Enroll Desktop Reader

50pcs RFID Key Fobs

50pcs RFID Cards

1pc User manual with Detail Instruction/Wire diagram/Video Guide

IP Based RFID Keypad Reader Metal Push Exit 4 Doors Access Control Board Systems Kit 600lbs Magnetic Lock

What the system can do:

Basic funtion: swipe card/key fob to open doorCheck/download/export the detail History Entry Record.Allow for access for certain door at certain time for different users.Keep door auto open during business time.Keypad PIN code programmingSwipe certain times to open and swipe certain times to Close.First card Open.a lot other features ….

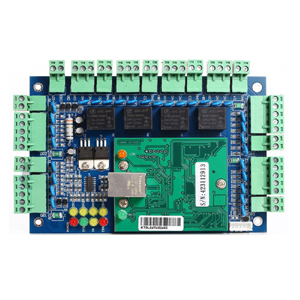

4 Doors Access Control Panel

Control 4 door,get in by swiping card and get out door by Exit buttonDoor controlled : 4Support 4 readersControl of user capacity up to 20,000 user / up to 100,000 history recordsNetwork communication via TCP/IPApplication Software Support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system, not support Mac.Support web interface(no advanced control, can add/delete user and check records .etc. basic function)Support phone app to Open Door even you are not there.

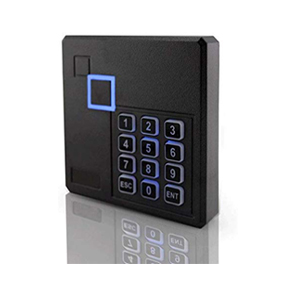

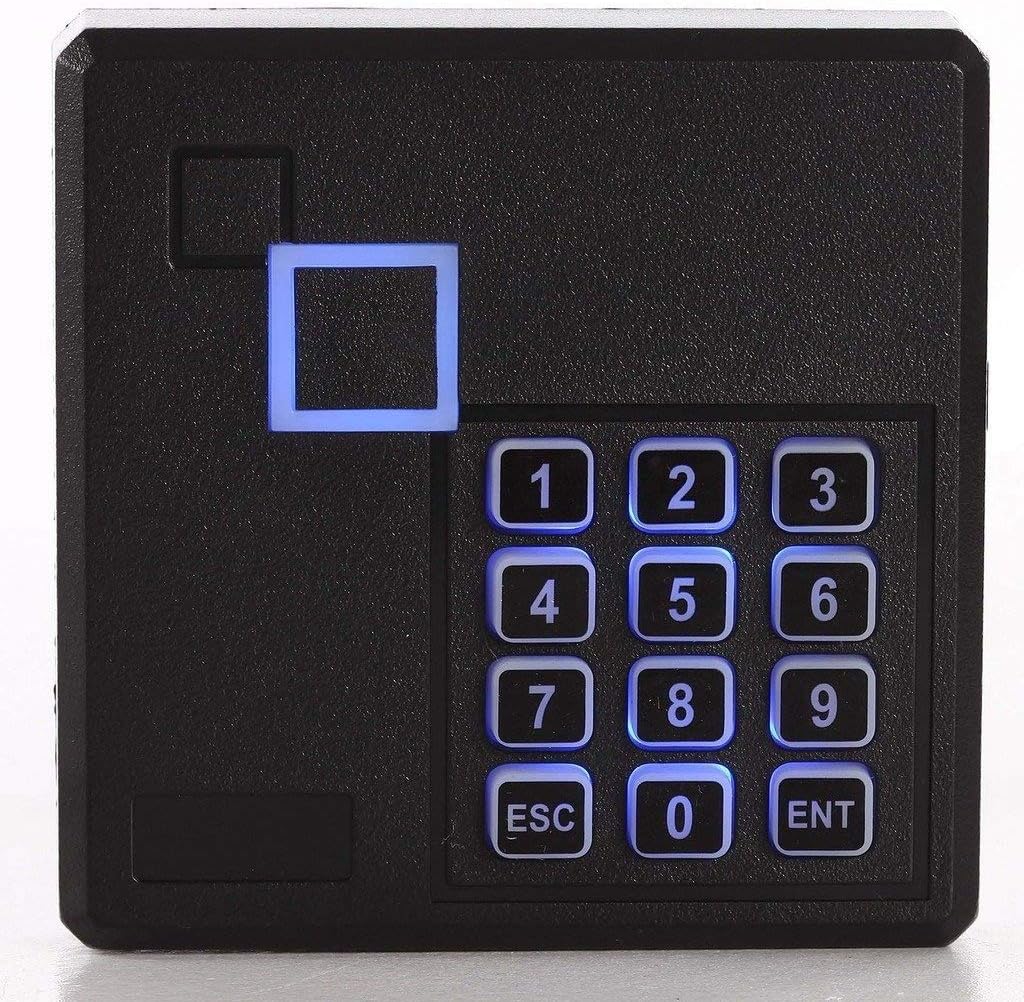

Reading range: 3-15 cm, Built-in LED and Loud Speaker (Buzzer)Supports Card, PIN, Card + PIN,work together with the control board.Size: 86*86*18 mm/ 3-3/8″ (W) x 3-3/8″(H) x 3/4″ (D) inchWiegand 26/34 bit with RFID reader,It’s reading EM 125khz RFID/Key Fobs

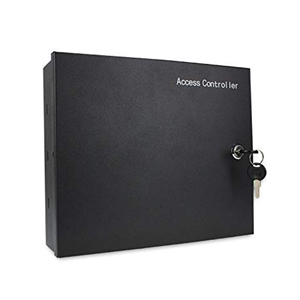

Input Voltage：110V-240V, Can be Used all over the world.Also act as the cabinet for the control board.Output: DC12V to power on the whole System.With Power Coard calbe to insert to electric outlet box.Size of the box：279mm * 234mm * 67mm

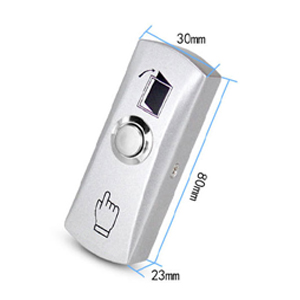

Push to exit, metal case with base, easy install and surface mount install.Made of high quality zinc alloy , safe and durable.Looks simple, comfortable and beautifulThrough 50000 times test by continuous, very durable

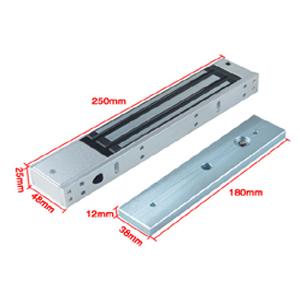

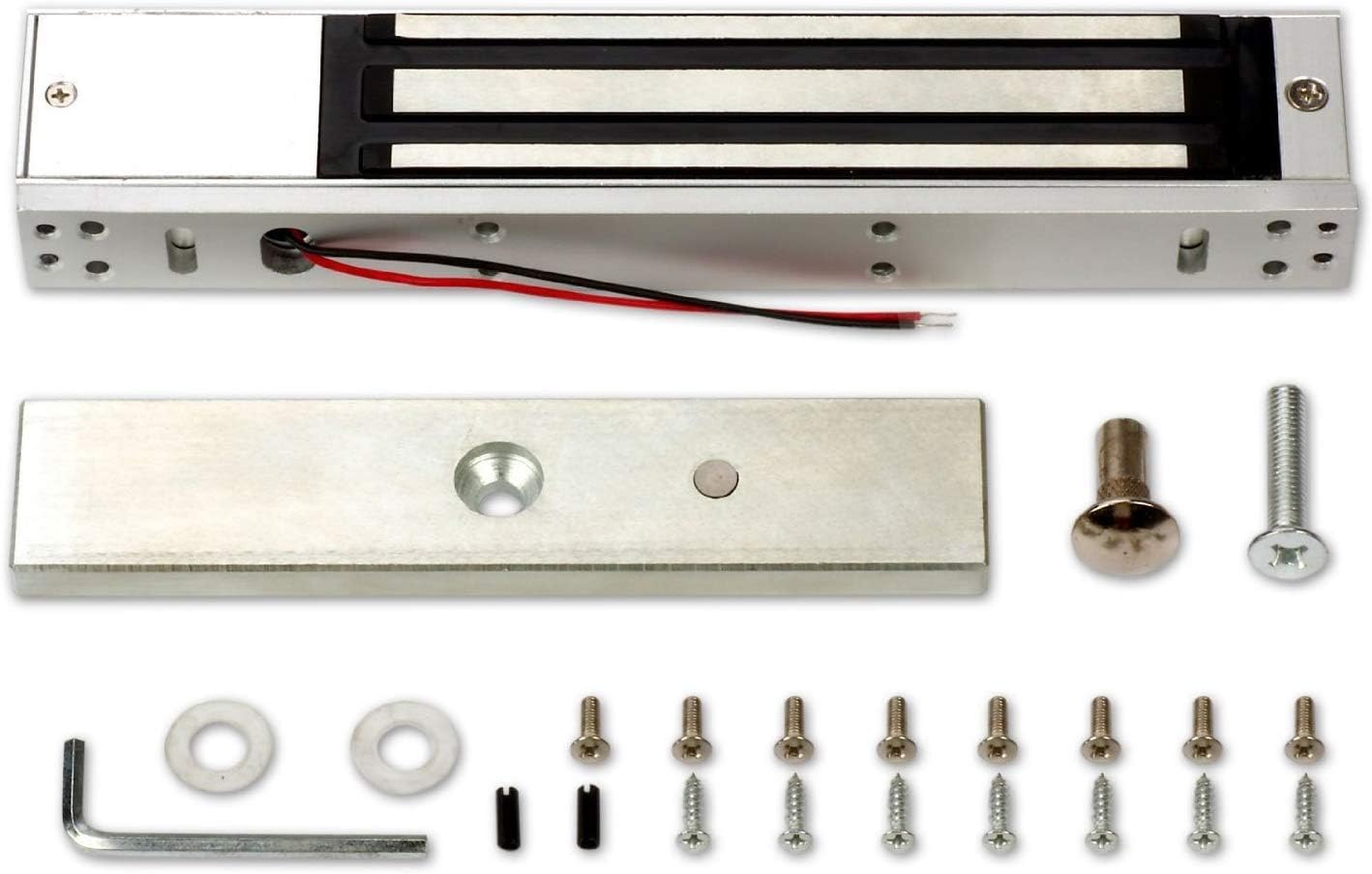

Lock body Size: 250 x 48 x 25mm; Plate size: 180 x 38 x 12mm600LBS Holding force, very strong.NC Mode-(Locked while supplied with power)Performance Testing: 1000000 times aging testSuitable For: Wooden Door, Metal Door, etc.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars 166

4.6 out of 5 stars 166

5.0 out of 5 stars 49

5.0 out of 5 stars 5

Price

$559.99$559.99 $409.99$409.99 $509.99$509.99 $489.99$489.99

Control Door
4 2 4 4

Reader
RFID Keypad Reader RFID Keypad Reader RFID Keypad Reader RFID Reader(waterproof)

Exit Button
Motion Sensor Motion Sensor&Metal Push to Exit Button Infrared No Touch Exit Button Infrared No Touch Exit Button

Control 4 doors.Get in door by swiping card/key fob, inputting PIN code or using card + PIN, and get out door by pushing button. Can store/download/check entry records and generate report by professional management software.
Control of memory up to 20,000 user / up to 100,000 logs. Auto open/close at any pre-set time during any day. Support “who” can enter which door at certain time, authorized access control.
Card Type: EM-ID Card .Response Speed: Less than 0.2 second.Exit button has base, easy install.The electric magnetic lock is with 600bls holding force.
Have smart phone APP to open lock remotely.App operate system: iOS & Android.Desktop USB reader,read card number into software so that easy programming/register user. Detail video guide and wire diagram make all easily, you can DIY.
Network communication via TCP/IP. Software Supportable Database: Access & SQL Server. Support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.
