Price: $99.99
(as of Apr 04, 2025 03:05:58 UTC – Details)

Product Description

Smart Door Access Control System 600lbs Magnetic Lock ZL Bracket Kit with Tuya App & Remote Control

Features:

This is a simple door access control system designed to provide protection for your premises.The lock can be unlocked by remote controllers.It also supports Tuya App and you can remotely open the lock by your phone App anywhere.It allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits.It supports maxi 30 remote controllers and up to 65 feet long.The 600LBS electromagnetic lock ensures that the door remains tightly secured at all times.Magnetic lock has a built-in alarm beeper that activates when the door is not securely locked.Users can easily exit the room using the exit button located inside.The power supply controller supports to add an access control keypad.Please search ASIN B0D2W6782J or B0D2W8WWXQ to get the keypad if you need.Designed for ease of use, this Access Control System is quick and easy to install.Its user-friendly design makes it simple to operate, saving you time and hassle.This system is highly effective in preventing unauthorized entry for residential or commercial use.

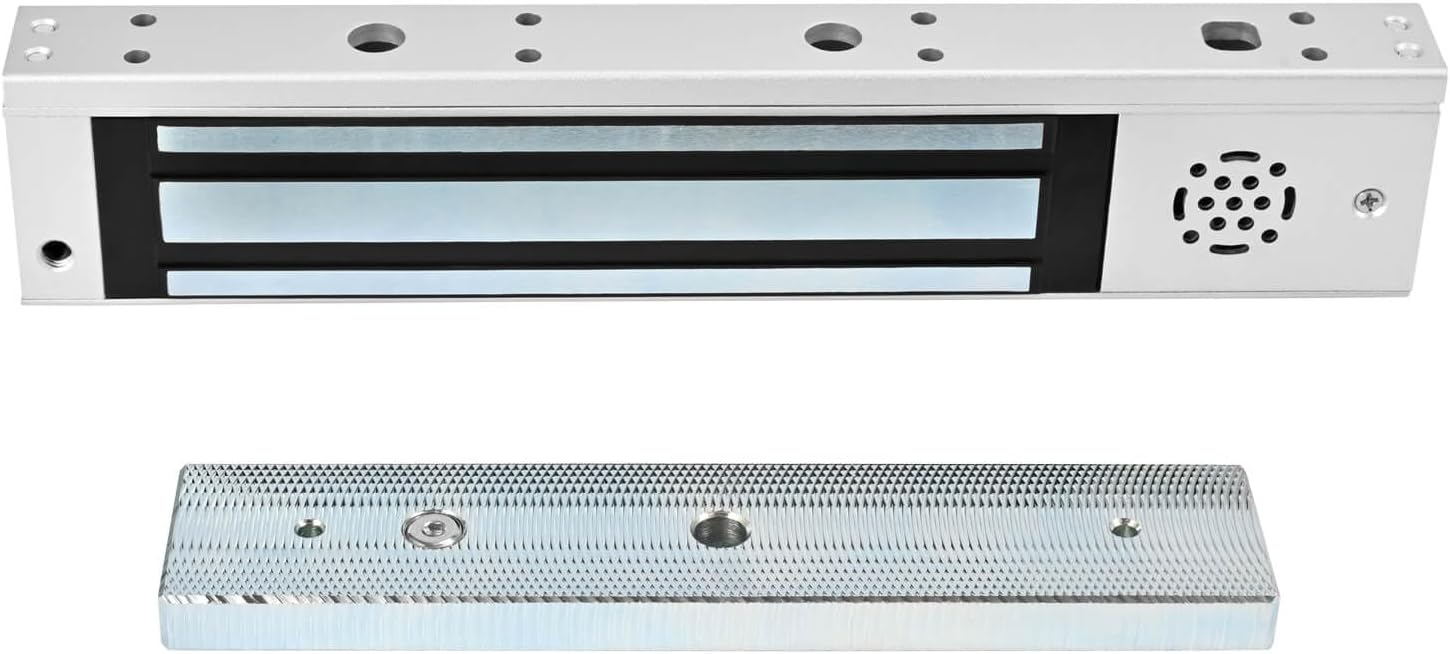

600lbs Magnetic Lock:

Cover Finish: Anodized aluminumLock Finish: ZincArmature Plate Finish: ZincInput Voltage: 12V DCCurrent: 12V/520mAHolding: 280kg / 600LbsBuild-in Alarm BeeperFail safe: Unlocked while power is removed (NC Mode)Size (L x W x H): 250 x 49 x 25 (mm) / 9.84x 1.93 x 0.98 (inch)Armature Plate Dimension (L x W x H): 180 x 38 x 11(mm) / 7.09 x 1.50 x 0.43 (inch)

Caution:

Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.

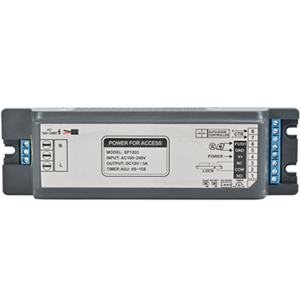

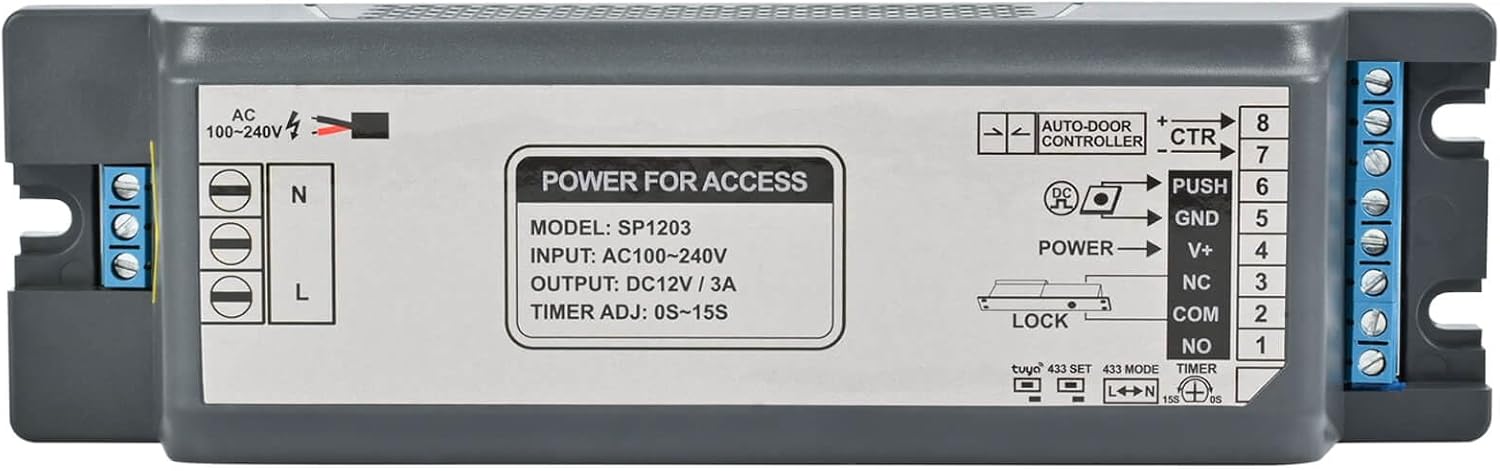

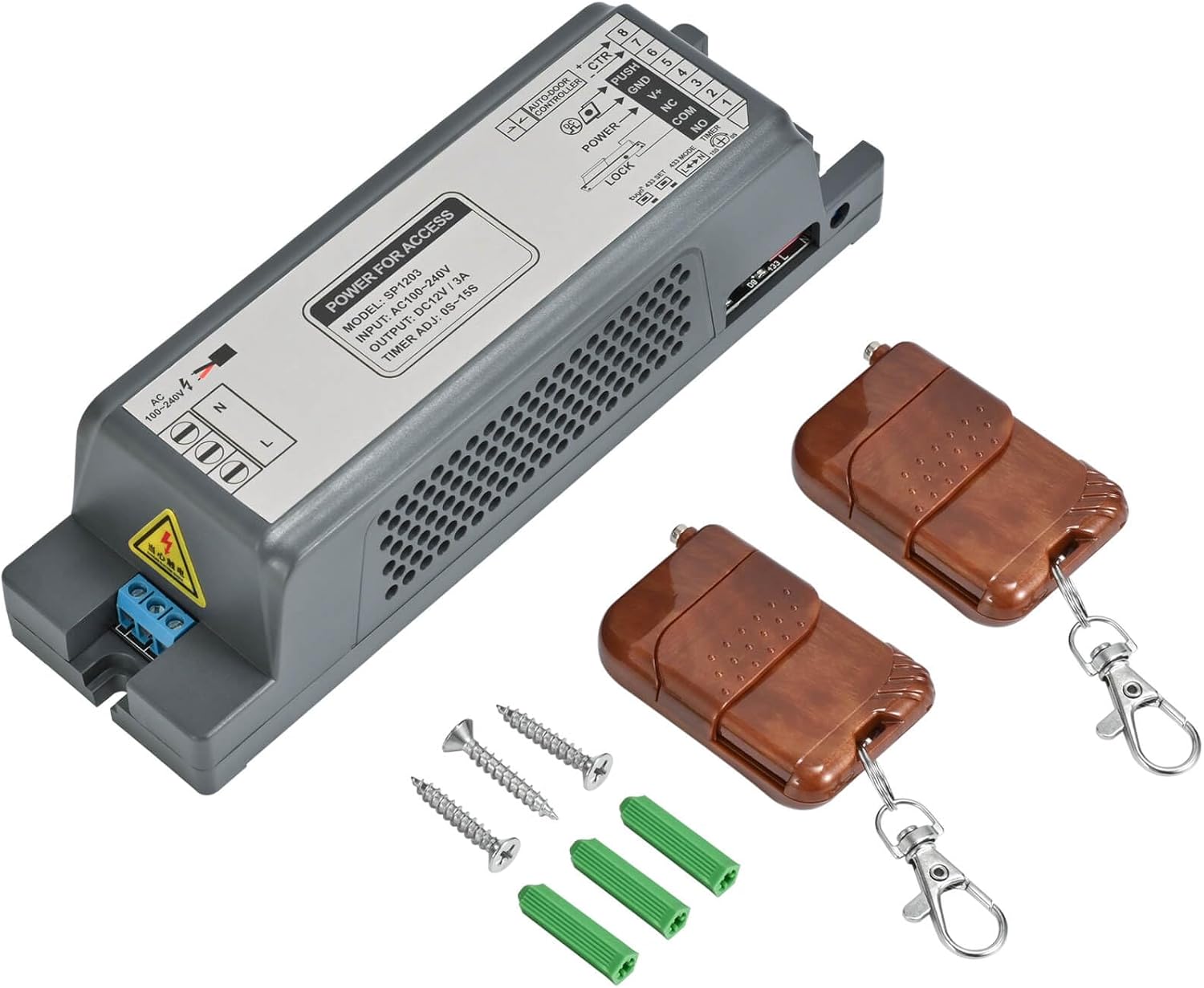

Smart Power Supply Control:

Support both Phone App Tuya Control and 433MHZ Remote ControlWIFI connecting and can be controlled by Phone App Tuya anywhereInput Voltage: AC110-240V (Worldwide voltage)Input Frequency: 50-60HzOutput Voltage: 14V DC / 3AEnclosure Material: PlasticTime Delay: 0-15sOperating temp: -20℃~+45℃(-4℉-113℉)Dimensions (Lx W x H): 7.32″ x 2.17″ x 1.89″ [186x55x48mm]Weight: 0.22kg / 0.49lb

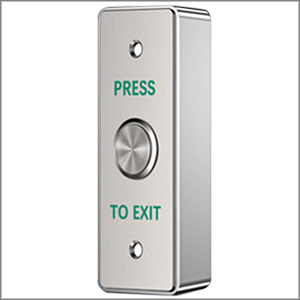

Push to Exit Button:

Dimensions: 3.66Lx1.18Dx1.02H (inch)

Weight: 0.15KG / 0.33lb

Current Rating: 3A@36VDC Max

Mechanical Life: 500,000 tested

Output Contact: NO/COM

Operating Temperature: 14℉-131℉

Operating Humidity: 0-95%

Panel Material: Stainless steel Panel

With Mounted Back Box

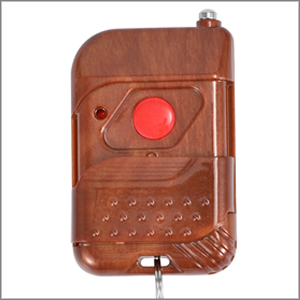

Remote Transmitter:

Power Source: 23A 12V Battery Operated

Number of Batteries: 1

Service Life of the Battery: 50,000 cycles tested

Transmitting Frequency: 433MHz

Number of Buttons: 1

Emission Distance: 30m / 65ft (Open area)

Encoding Type: Fixed code

Enclosure Material: ABS Plastic

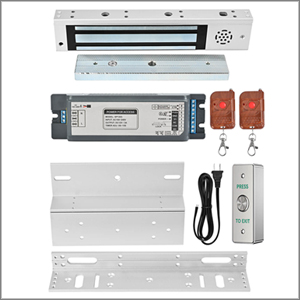

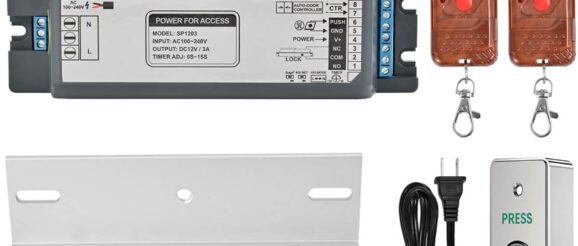

Package Included:

1 x 600LBS electric magnetic lock

1 x Power supply control

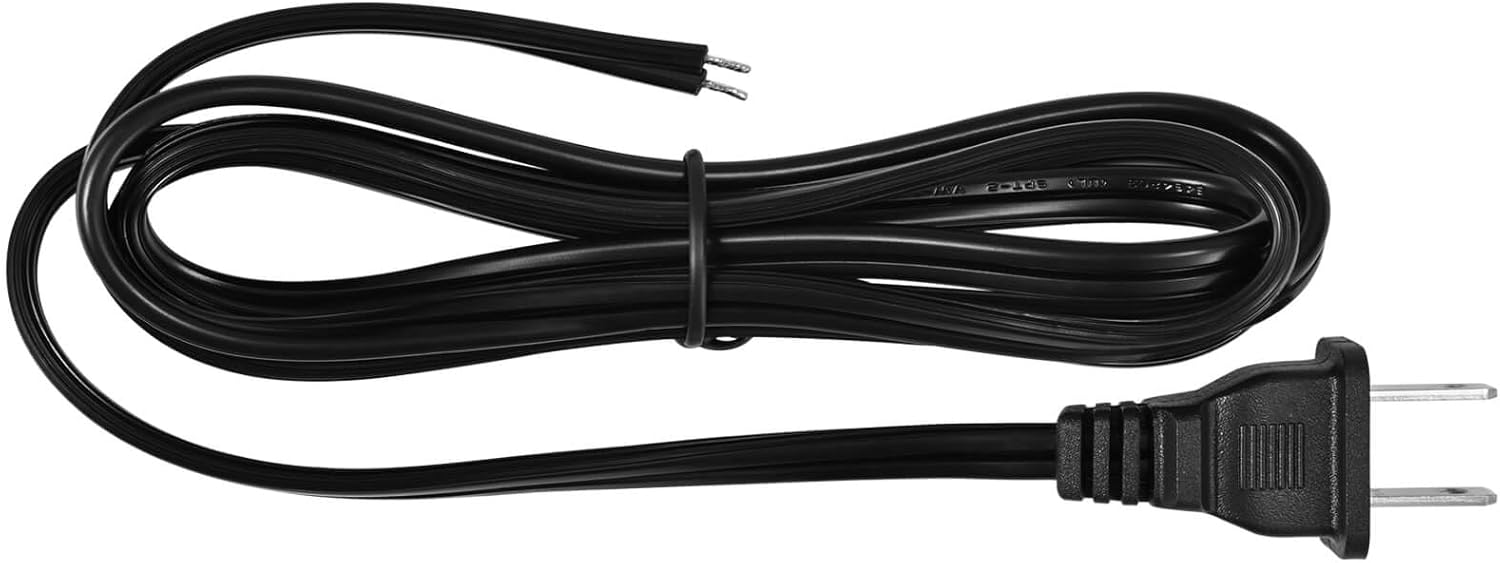

1 x Power Cord

2 x Remote Transmitter

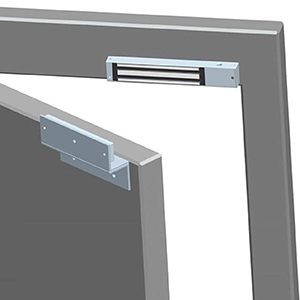

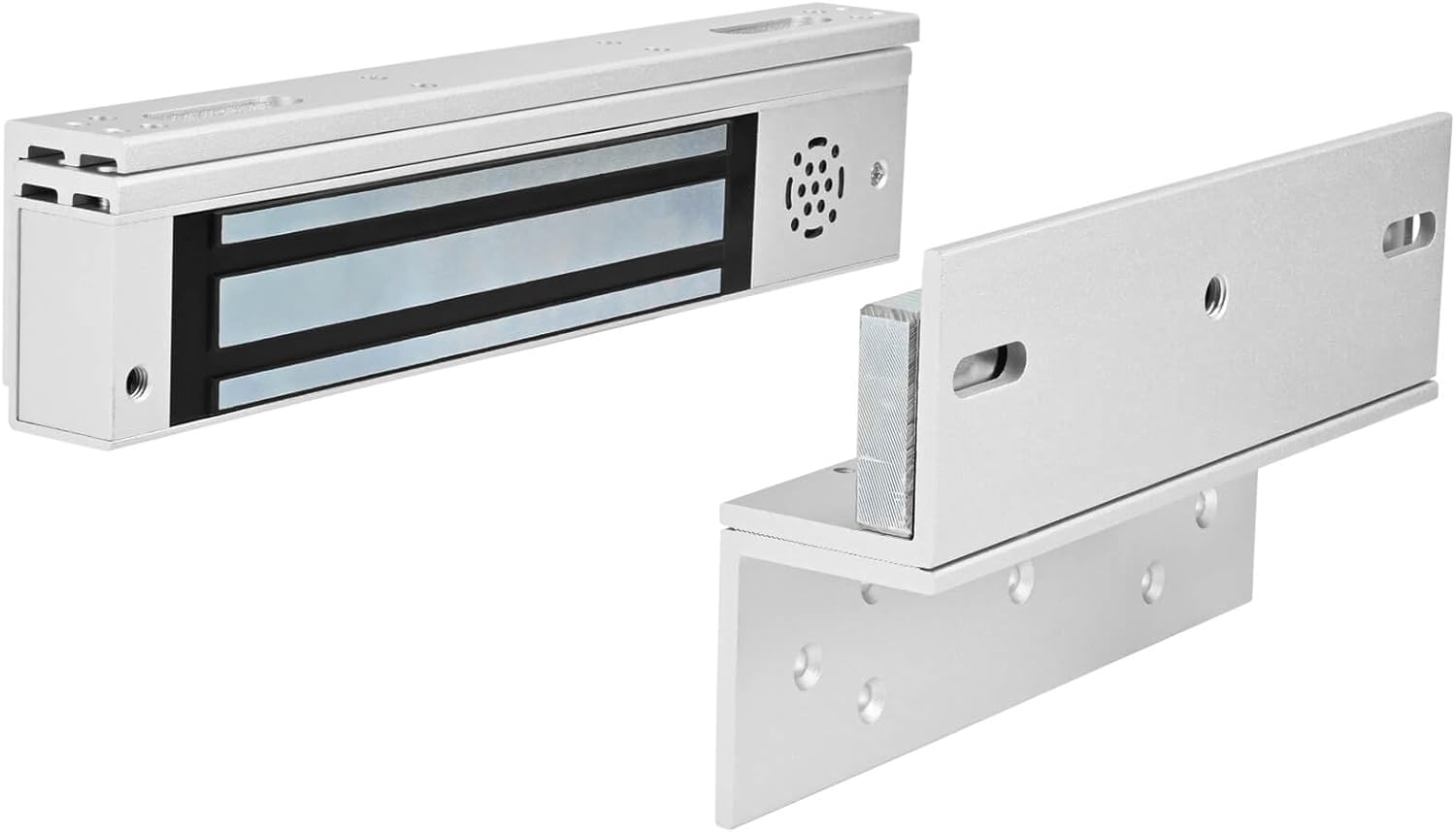

1 x ZL Bracket

1 x Push to Exit button

1 x English user manual

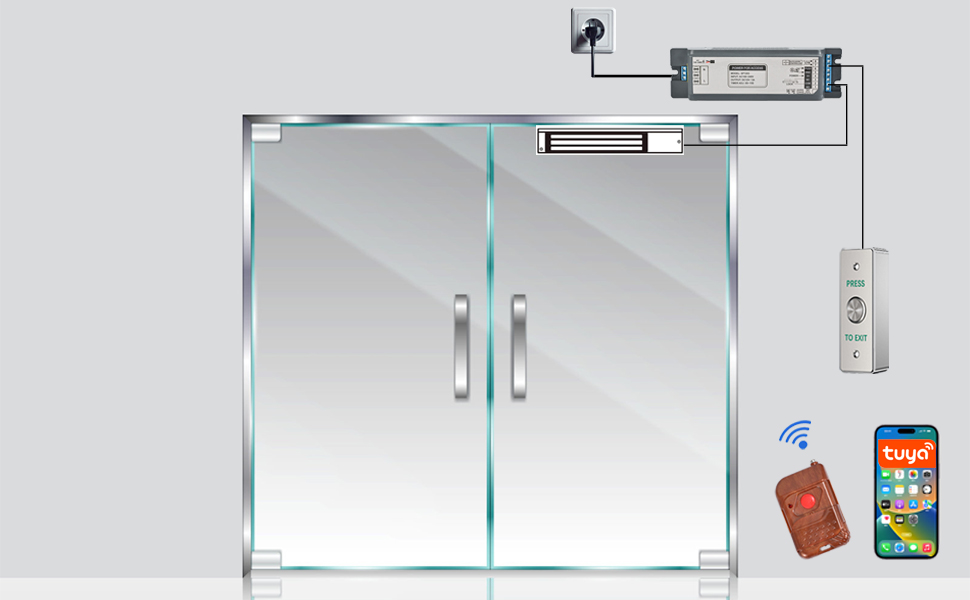

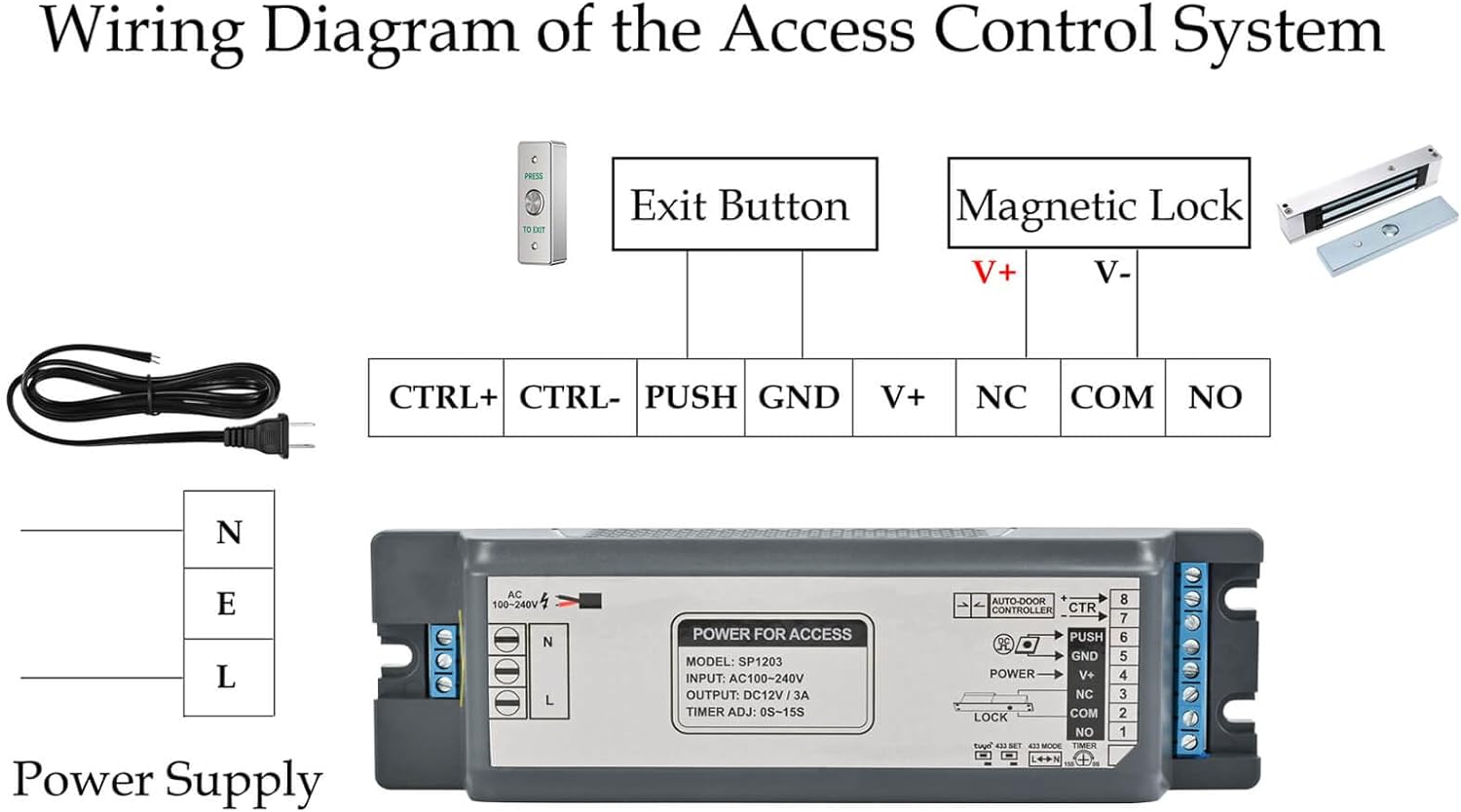

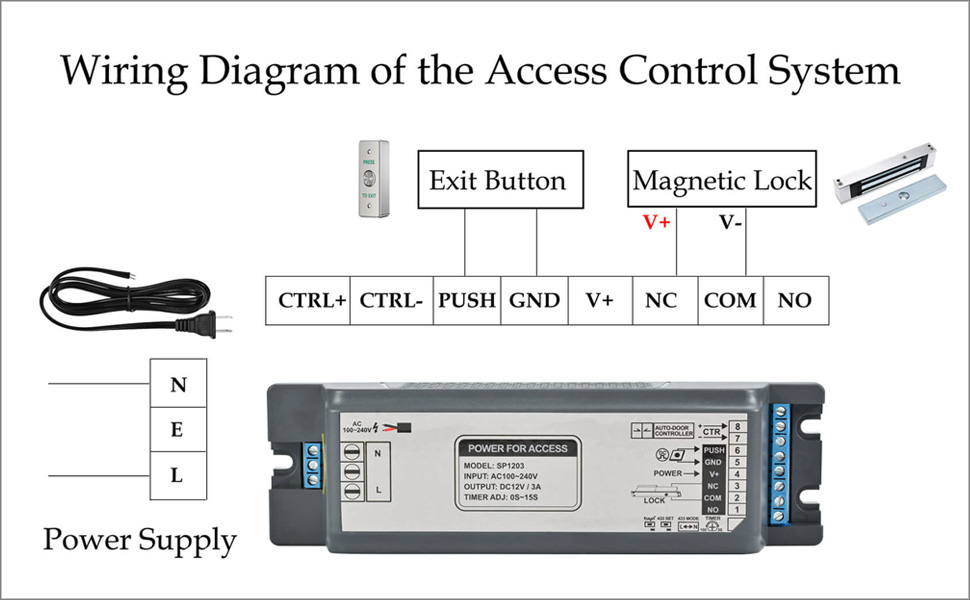

Smart Door Access Control System: This Kit includes a 600lbs magnetic lock, power supply controller with 2 remote controllers, stainless steel exit button, and plug connector for seamless and secure access control.
Tuya App Remote Control: Unlock and manage your door remotely from anywhere using the Tuya App, offering convenience and flexibility for modern smart home or business security.
Built-In Alarm Beeper: Magnetic lock features a built-in alarm that activates when the door is not securely locked, providing an added layer of safety for your property.
Remote Controllers: Includes two remote controllers and supports to add max 30pcs, allowing multiple users to easily manage door access.
Durable & Easy to Use: Stainless steel exit button ensures smooth and reliable exit functionality, while the system is easy to install and compatible with various door types, ideal for residential or commercial applications.
